Mark-II Deep Well Handpump
Product Details:
- Application Rural and Community Water Supply
- Shape Vertical Cylindrical
- Handle Type Long reciprocating lever handle
- Product Type Mark-II Deep Well Handpump
- Usage Manual Water Extraction
- Diameter Handle dia approx 30 mm, Cylinder bore dia 100 mm
- Structure Heavy Duty, Robust
- Click to View more
X
Mark-II Deep Well Handpump Product Specifications
- Operates under high static water level up to 50 m
- Cast Iron, Stainless Steel
- Engineered to strict tolerance for deep well operation
- Approx 45-60 kg
- Manual Water Extraction
- Handle dia approx 30 mm, Cylinder bore dia 100 mm
- Heavy Duty, Robust
- Mark-II Deep Well Handpump
- Long reciprocating lever handle
- Sliver
- Rural and Community Water Supply
- Vertical Cylindrical
- Brass with nitrile rubber seals
- Flanged, Powder-coated for corrosion resistance
- Epoxy paint or powder coating for durability
- Designed for more than 10 years of service with regular maintenance
- 900 liters per hour at 40 strokes per minute
- Low, easy to maintain using locally available tools
- Upto 50 meters (160 feet)
- Conforms to IS: 9301 (Indian Standard) specifications
- Brass-lined or Cast Iron
- 32 mm (1.25 inches) GI or uPVC riser pipe recommended
- Galvanized steel, threaded couplings
Product Description
Since our inception in the year 2007, we have been engaged in manufacturing, exporting and supplying top-grade range of Mark II Deep Well Handpump. The offered hand pump is manufactured as per international quality standards using excellent quality metal alloys with the aid of sophisticated techniques. Featured with connecting rod with 12 mm and 3 meter diameter, the provided hand pump suits as excellent utility for pumping underground water for drinking applications. Provided at cost-effective rates, this Mark II Deep Well Handpump is also checked by quality experts on varied aspects.
Mark II Deep Well Handpump Advantages:
- Admired for its excellent impact resistance
- Long life
- Supreme finish
- Needs less maintenance
- MS/SS Connecting Rod Diameter = 12mm 3 meter length
- Recommended for water level setting depth (metres) : 20-45
- Approximate Discharge (Litres/Hour) : 900
- GI Riser Pipe = 32 mm NB 3 meter length *
- Minimum ID of bore (milimetre): 100
Stainless steel pipes / PVC pipes also available on request
Mark II Deep Well Handpump Technical Details:
|
Operating Depth |
20-45 mtr |
|
Material |
Cast Iron, Stainless Steel |
|
Installation/After Sales Service |
Provided |
|
Brand |
Apex |
|
Connecting Rod Diameter |
12 mm |
|
Connecting Rod length |
3 mtr |
|
GI Riser Pipe |
65 mm NB 3 meter |
|
Minimum ID of bore |
100 mm |
|
Assembly |
50 mm Dia cast iron brass sleeved Assembly |
We are manufacturer & Exporter of Mark-II Deep Well Handpump mainly in Angola Burkina Faso Burundi Cameroon Chad Congo Congo Ethiopia Ghana Guinea Kenya Liberia Madagascar Malawi Mal Mozambique Niger Nigeria Rwanda Senegal Sierra Leone Somalia South Africa South Sudan Sudan Tanzania Togo Uganda Zambia Sri lanka New Guinea Conakry Cameron etc
Contact for best quality Mark-II Deep Well Handpump with best affordable rate .
We export to Nigeria, Uganda, Netherlands and Burkina Faso.
Durable Construction for Long-Term Use
Constructed from heavy-duty cast iron and stainless steel, the Mark-II Deep Well Handpump is designed to withstand rigorous daily use and demanding weather conditions. The pump is powder-coated or epoxy painted to resist corrosion, ensuring its longevity and durability in outdoor and challenging environments. With strict engineering tolerances and robust material selection, this handpump operates effectively even under high static water levels up to 50 meters.
High Efficiency and Easy Operation
With a discharge capacity of 900 liters per hour at a moderate 40 strokes per minute, the Mark-II delivers ample water quickly. The long reciprocating handle provides efficient leverage for users of most ages. Cylinder and plunger components are engineered for minimal friction and maximum output, making water extraction both easy and reliable for rural and community water supply needs.
Low Maintenance and Local Serviceability
Mark-II handpumps are designed for ease of maintenance using locally available tools and materials. Critical components such as the plunger and check valve utilize brass and nitrile rubber, while connecting rods feature galvanized steel for enhanced durability. Regular servicing ensures a lifespan of over 10 years, minimizing downtime and maintenance costs for communities.
FAQ's of Mark-II Deep Well Handpump:
Q: How is the Mark-II Deep Well Handpump installed and at what depths can it operate effectively?
A: The Mark-II Deep Well Handpump can be installed at depths of up to 50 meters (160 feet), making it suitable for deep well applications. It is anchored securely using a flanged pump head and compatible with 32 mm GI or uPVC riser pipes. Installation requires standard tools and can be performed by trained local technicians.Q: What materials are used in the main components to ensure reliability and resistance to corrosion?
A: The handpump incorporates cast iron and stainless steel for the structural components, a brass-lined or cast iron cylinder, and brass with nitrile rubber seals for plunger and check valves. All external surfaces are powder-coated or epoxy painted to provide superior corrosion resistance, supporting long-term outdoor use.Q: What is the process for maintaining the Mark-II handpump, and can local communities handle maintenance?
A: This handpump is designed for low maintenance and ease of service using locally available tools. Routine maintenance includes checking plunger seals, lubricating moving parts, and inspecting rods and valves. Local technicians can be easily trained to perform these tasks, ensuring reliable community access to water.Q: Where is the Mark-II Deep Well Handpump typically used?

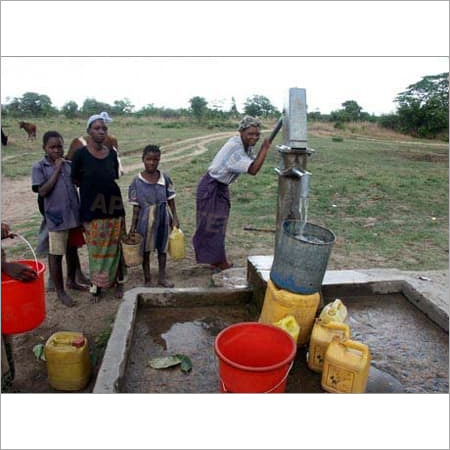

A: The Mark-II is widely used in rural areas, community water supply projects, and locations where reliable manual water extraction is required. Its robust and weather-resistant build makes it ideal for villages, schools, farms, and public institutions in India and other countries with similar needs.Q: What are the primary benefits of using the Mark-II Deep Well Handpump for community water supply?
A: Key benefits include consistent high discharge rates, long service life (over 10 years with regular maintenance), low operational costs, and the ability to function efficiently under challenging deep well conditions. Its easy operation and maintainability make it especially valuable for sustainable water supply in remote areas.Q: How does the pump ensure water quality and safe operation over its lifespan?
A: The Mark-II handpump uses materials compliant with IS:9301 standards, including non-reactive brass for water-contact parts and stainless steel to prevent rust. Regular maintenance and use of quality seals help maintain water hygiene and mechanical integrity throughout its service life.Tell us about your requirement
