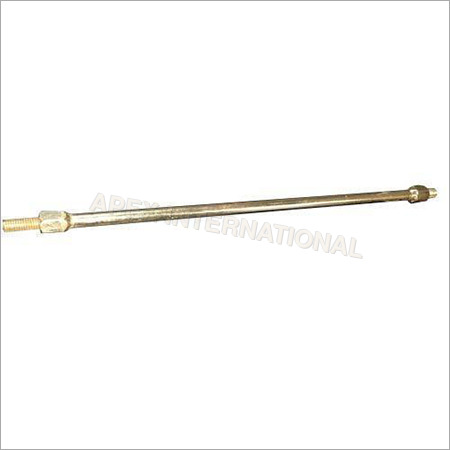

Hand Pump Connecting Rod
Product Details:
- Shape Round Rod
- Size 11.6 mm
- Part Type Connecting Rod
- Material Mild Steel
- Usage Hand Pump Mechanism
- Product Type Hand Pump Connecting Rod
- Application Submersible
- Click to View more
X
Hand Pump Connecting Rod Product Specifications
- Mild Steel
- 11.6 mm
- Hand Pump Connecting Rod
- Round Rod
- Hand Pump Mechanism
- Submersible
- Transmits reciprocating motion from handle to riser pipe piston
- Connecting Rod
- Yes, with protective coating
- Low, easy replacement
- Suitable for India Mark II, Mark III, Afridev, or custom hand pumps
- Forged/Precision Machined
- High tensile for repeated cyclic load
- Polished or Zinc Plated
- As per IS:15500 standards or customer specification
- Depends on length and material selected
- IS 15500, IS 9301 or equivalent international standards
- Male/Female threaded ends
- Varies as per hand pump model (typically 2-12 ft)
Product Description
This mild steel fabricated Hand Pump Connecting Rod is 116 mm thick and its operating depth ranges between 7m to 14m. Known for its unique mechanical strength, this manual pump component has been specially designed to counter balance its weight. This rod simplifies mechanism of manual pump and decreases human effort to access underground water. Offered product has sealed ball bearings that are located on its stainless steel axle for saving its maintenance cost. Exceptional strength, corrosion proof design, superior finish, ergonomic look and low cost are some of its key features that deserve special mention. We would like to introduce ourselves as a prestigious manufacturer and exporter of Hand Pump Connecting Rod.
Hand Pump Connecting Rod Features:
- Developed from mild steel that has long lasting surface finish
- Application specific design
- Useful for minimizing human effort
- Rust proof design, simple operating system, high strength, compact shape, standard thickness
Hand Pump Connecting Rod Specifications
|
Brand |
Apex |
|
Thickness |
11.6 mm |
|
Discharge |
5-10 LPH,10-15 LPH |
|
Operating Depth |
7-14 m |
|
Material |
M.S |
|
Installation/After Sales Service |
Provided |
Precision Crafted for Reliable Performance
Every Hand Pump Connecting Rod is manufactured using either forging or precision machining processes, guaranteeing durability and dimensional accuracy. The rods are corrosion-resistant due to protective coatings, making them suitable for long-term use in a variety of water extraction applications. Their high tensile strength ensures they withstand repeated cyclic loads.
Adaptability Across Multiple Pump Models
These connecting rods conform to IS 15500 and IS 9301 standards, ensuring compatibility with leading hand pump models like India Mark II, Mark III, and Afridev. They can also be customized in size and diameter as per customer and application needs, making them versatile components for different installation scenarios.
Easy Maintenance and Replacement
Designed for low maintenance, these connecting rods can be quickly and easily replaced. Their threaded ends facilitate secure and straightforward assembly or disassembly, reducing downtime and ensuring the hand pump mechanism runs efficiently with minimal intervention.
FAQ's of Hand Pump Connecting Rod:
Q: How is the hand pump connecting rod installed in a hand pump mechanism?
A: The connecting rod is installed by securely attaching its male or female threaded ends to the lever mechanism and piston assembly of the hand pump. This ensures smooth transmission of the reciprocating motion when the hand pump handle is operated.Q: What is the primary function of the hand pump connecting rod?
A: The connecting rod transmits the reciprocating motion from the hand pump handle to the piston within the riser pipe, enabling water to be drawn up from the well or borehole.Q: When should I consider replacing the connecting rod in my hand pump?
A: Replacement is recommended if you notice decreased pump efficiency, visible rod wear, or thread damage. Thanks to its easy replacement design, maintenance can be performed quickly when needed.Q: Where can these connecting rods be used?
A: These rods are suitable for submersible hand pump mechanisms, commonly installed in rural and urban water supply systems using models like India Mark II, Mark III, Afridev, and also in custom hand pump installations worldwide.Q: What process is used in manufacturing the connecting rod?
A: Each rod is forged or precision machined from high tensile mild steel, then finished with a protective zinc or polished coating to ensure strength, durability, and corrosion resistance.Q: How does corrosion resistance benefit the connecting rod's performance?
A: The protective coating, whether zinc-plated or polished, prevents rust and degradation due to water exposure, ensuring the rod's longevity and sustained performance even under continuous cyclic loads.Q: How do I ensure the connecting rod fits my specific hand pump model?
A: You can specify the required length, diameter, and thread type according to IS:15500 standards or based on your unique hand pump model's specifications. Custom sizes and finishes are available to meet diverse installation requirements.Tell us about your requirement
