Home » Products » Hand Pumps » U2U3 Modified Deep Well Hand Pumps

U2U3 Modified Deep Well Hand Pumps

U2U3 Modified Deep Well Hand Pumps
U2U3 Modified Deep Well Hand Pumps
Send Inquiry
Product Code : 10
Product Description

Product Details:

discharge

15 ltr per 40 stroke

Brand

Apex

Bore Diameter

100 mm

Internal Diameter Of Cylinder

50 mm

Cylinder

UPVC brass lined cylinder assembly

static water level depth

20 mtr - 40 mtr

static water level depth

20 mtr - 40 mtr

discharge

600 Litres/Hour

UPVC Riser Pipe

3 mm ODX 4.7wt * 3meters length

Material

SS 304

Connecting Rod Diameter

12 mm

Technical Specifications:

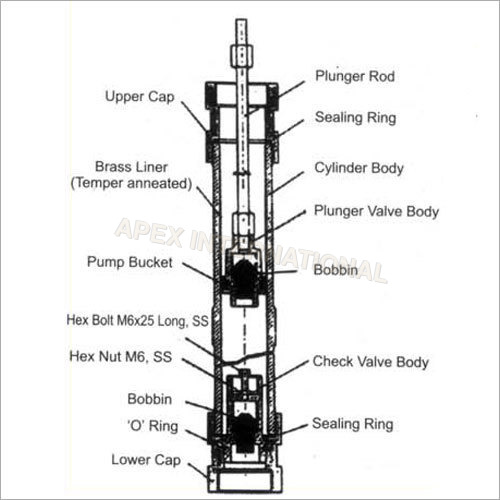

  • Pump Type : U3 modified deep well hand pump as per SKAT-HTN Switzerland specifications with 50mm dia open top, UPVC brass lined cylinder assembly with extractable plunger and foot valves assemblies.
  • Recommended for water level setting depth (metres) : 20-45
  • Minimum ID of bore (milimetre): 100
  • Approximate Discharge (Litres/Hour) : 600
  • UPVC Riser Pipe: 63 mm ODX 4.7wt * 3meters length.
  • MS/SS Conneting Rod Dia: 12 mm
