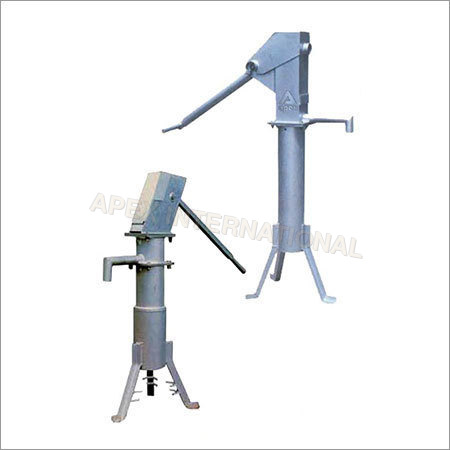

Direct Action Hand Pump

Direct Action Hand Pump

Product Details:

X

Product Description

Having in-depth market experience, we are working in close-touch with clients in offering a flawless range of  Direct Action Hand Pump. These pumps are manufactured at our well-equipped premises using superior quality metal alloys and highly advanced techniques. The offered pumps are suitable to be used in colleges, gardens, rural areas, grounds and several other public places for pumping portable water from ground. Our clients can purchase the provided Direct Action Hand Pump in various specifications at reasonable prices from us.

Direct Action Hand Pump Key Features:

  • Easy to install
  • High strength
  • Supreme finish
  • Long life

Afridev Hand Pump has been specifically designed for Village Level Operation and Maintenance (VLOm). The robust design with non-corrosive underground components guarantees a completely hassle free operation.

  • Pump Type : Afridev deep hand well pump as per SKAT-HTN Switzerland specifications, with 50mm dia open top, UPVC brass lined cylinder assembly with extractable plunger and foot valves assemblies.
  • Recommended for water level setting depth (metres) :upto 45 Meter.
  • Minimum ID of bore (milimetre): 100
  • Approximate Discharge (Litres/Hour) : 990
  • UPVC Riser Pipe = 63mm OD * 4.7mm Wall Theckness * 3 Meter length
  • MS/SS Connecting Rod Diameter = 10mm (12mm Dia can loaded also be supplied)
  • Stroke Length= 225 ± 6mm

Direct Action Hand Pump Technical Details

Water level

10 mtr - 15 mtr

Max Flow Rate

21 liter in 30 stroke

Material

Stainless Steel

Operating Depth

7-14 m

Stroke Length

21 liter in 30 stroke


We export to Nigeria, Uganda, Netherlands and Burkina Faso.
